AN and JIC Fittings

The wikipedia article on JIC fittings is somewhat lacking (as of September 2011 anyway), as is the wikipedia article on AN (Army-Navy) fittings.

So this page provides as much information as I can find on the AN / JIC / SAE37′ hydraulic fitting system.

Why so many names?

Originally, everybody had their own system for hydraulic couplings, a lot were similar, but not compatible with each other causing confusion and a parts nightmare. So finally the military got involved and created the AN (Army-Navy) connector standard. The AN standard defines tight tolerances and defines every type of fitting (and adaptor) available.

Then JIC (The Joint Industry Council) came along and use the AN standard as a basis for their own standard. They essentially just ratified the parts to reduce the part count. The tolerances allowed are more lenient for JIC fittings too, compared to AN fittings.

The terms AN and JIC are used interchangeably in aftermarket automotive hydraulic systems. Mainly the system is used for fuel and oil systems. Occasionally it is also used for coolant systems, but it is pretty rare. What we’re after in reality are AN fittings, because they offer the best dimensional tolerances, and sealing surface finishes. Not all fittings that look the same, are the same!

In Motorsport

Generally the fittings in motorsport are compatible with the AN / JIC standards, but rarely do you see anyone claiming they sell AN or JIC fittings, in fact they normally say that they sell “re-usable fittings”

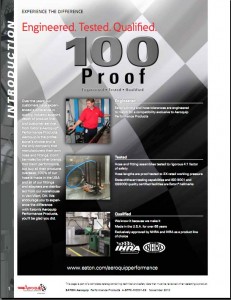

Aeroquip are one of the biggest suppliers of these type of fittings to the motorsport industry. They are sold by quite a few people. Think Automotive in London sell the majority of the Aeroquip range.

The construction of an Aeroquip fitting is shown in the dissected photo below:


AN sizes are shown as a size number prefixed with a hyphen, so a -10 fitting would be called a “Dash 10″ AN fitting.

The number represents the OD (Outside Diameter) of the tube the fitting was designed to fit in the old AN specifications. The number represents the OD as multiples of 1/16”. Therefore, a -10 fitting was originally designed to fit an solid tube with an OD of 10 * 1/16″ = 5/8″ (~16mm).

Conical Seat Angle

The standard JIC and AN conical seat angle is 37°. There is another standard JIC-45 which uses 45° conical seats, so be careful and make sure all the conical seats in your system are compatible.


The JIC/AN threads are a UNJF profile. The UNJF profile is a modified UNF profile. UNJ specifies a minimum and maximum root radius for the thread to increase strength. If you are wanting to make a JIC/AN fitting on your lathe, you can normally do so using standard 60° thread cutting tools.


If you are thinking of making your own JIC/AN fittings, you can use the dimensions in the diagram below. The original source of the dimensions can be downloaded here

Fitting Size Hose O.D. A B C D E F J
-2 1/8″
0.062 0.177 0.245 0.083 0.563 0.250 0.448
-3 3/16″
0.125 0.177 0.307 0.146 0.625 0.312 0.479
-4 1/4″
0.172 0.193 0.359 0.193 0.688 0.364 0.550
-6 3/8″
0.297 0.196 0.475 0.318 0.813 0.481 0.556
-8 1/2″
0.391 0.253 0.654 0.426 1.000 0.660 0.657
-10 5/8″
0.484 0.266 0.767 0.539 1.125 0.773 0.758
-12 3/4″
0.609 0.315 0.938 0.664 1.375 0.945 0.864
-16 1″
0.844 0.315 1.188 0.913 1.625 1.195 0.911

8 thoughts on “AN and JIC Fittings

      1. Adam

        I believe the above poster was refering to the typo in the table above where it refers to the hose O.D. It should say the hose I.D.

          1. Eric Ford

            What the previous individuals relayed to you is correct. “Hoses” are measured by the I.D., whereas “tubing” is measured by the O.D. and understood to be thin-wall. If you check your own link carefully, you will notice that the table identifies Tubing (OD) just as your upper image shows. The issue is with the lower spreadsheet that appears to copy the upper image, but mistakenly says “HOSE O.D.” You can take your time to verify this oversight, or promptly leave a snarky response as before. The choice is yours

          2. Brian_S Post author

            None of the responses above are snarky, and none are overly prompt either. Unfortunately I don’t have much time to be able to service the website for comments. I have verified through Think Automotive that for Hose it is indeed the I.D. that is specified. I’ll update the page with the change, thanks for the information. Would have been easiest to just measure a hose I guess! lol – But I’m not near any right now.

  1. Mark Tompkins

    Thanks for this info! I haven’t been able to find an adapter for my Quadrajet to change over to AN fittings. Now I can make my own without trying to reverse engineer the AN side.
